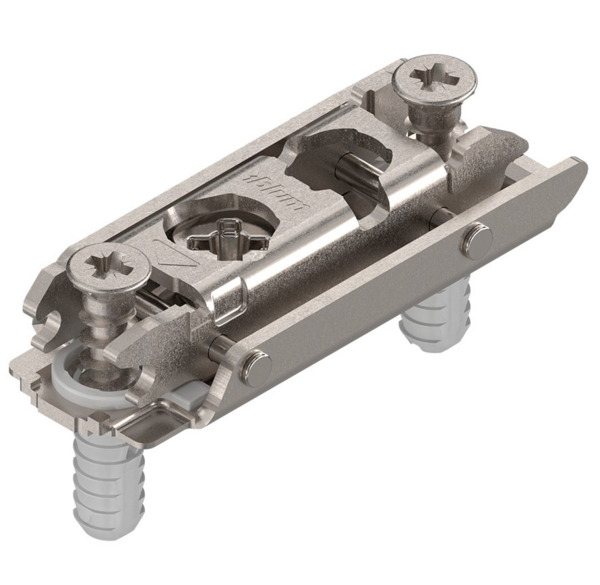

Blum In-line Mounting Plate 0mm - 5mm Expando

Home > Products >Hinges/Pocket Door>Blum Hinges>Mounting Plates>0mm Mounting Plates>Blum In-line Mounting Plate 0mm - 5mm Expando

Blum In-line Mounting Plate 0mm - 5mm Expando

Compatible hinge: CLIP top BLUMOTION/CLIP top/CLIP
Compatible lift: AVENTOS HK-S/AVENTOS HF (2 required per mechanism set)
Shape of mounting plate: Straight
Spacing: 0mm for 18mm cabinet sides
Steel material
Nickel plated finish
Required fixings: EXPANDO Ø5mm (pre-mounted screws with split dowels)
Mounting plates height adjustment: With cam
Height adjustment: +/- 2mm
Item package: 1 piece
Cabinet front edge to first fixing position: 20mm
Diameter of fixing holes: 5mm
Drilling depth of fixing holes: 11.5mm

Plates Height / Reinforcement

0mm

Plates Mounting

Expansion Dowels

Material / Finishes

Nickel
