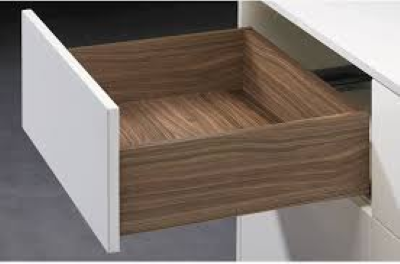

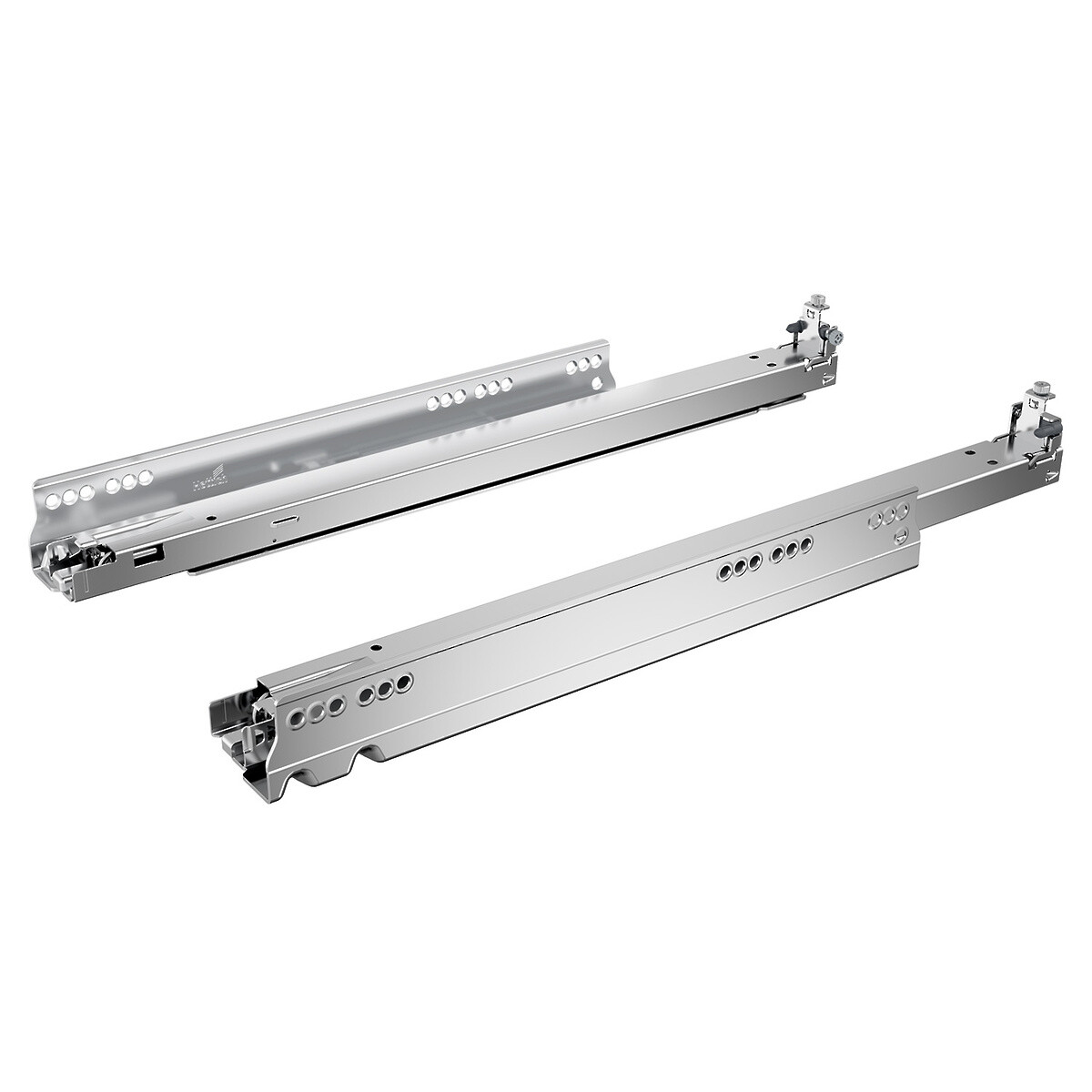

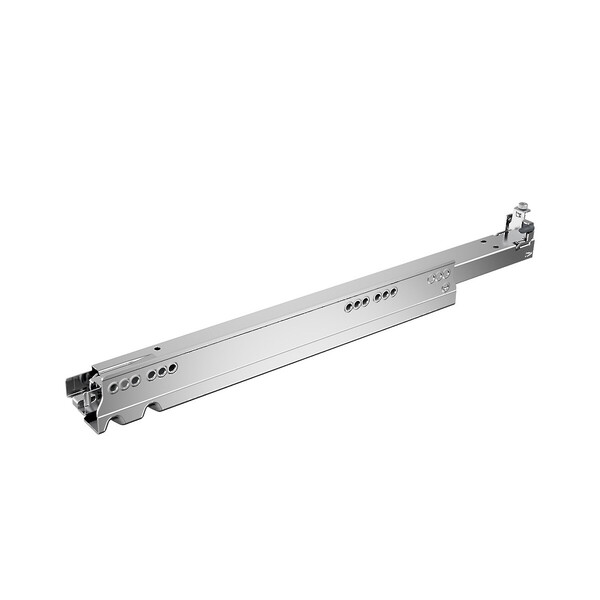

• Drawer runner for combining with wooden drawer
• Full extension runner with integrated tilt and radial adjustments
• Slide on installation with 2D catches for tool-less height and side adjustment
• Suitable for drawers with a side profile thickness of up to 16mm
• Load classes XS (10 kg) / L (40 kg) / XL (70 kg)
• Optional: pull-out shelf support / pull-out shelf locating catch
• Optional: Push to open Silent opening system
• Catch must be ordered separately

Tool Free Adjustments:

• Height
  up to +3mm
• Side
  up to +/- 1.5mm
• Tilt
  up to +4mm
• Radial
  up to +/- 1.5mm
• Depth
  up to +/- 2mm
