Push-To-Open "W" Wind Lift System Kit

Push-To-Open "W" Wind Lift System Kit

Push-To-Open "W" Wind Lift System Kit

Application Type

Flap Door

Door Height Range

8-5/8" to 15-3/4" (220mm to 400mm)

Door Weight

1kg to 5.2kg (2.2lbs to 11.5lbs) Include The Weight of The Decorative Hardware

Mounting Type

Side Mount

Opening / Closing Type

Push-To-Open

Opening Degree

85Â° to 110Â°

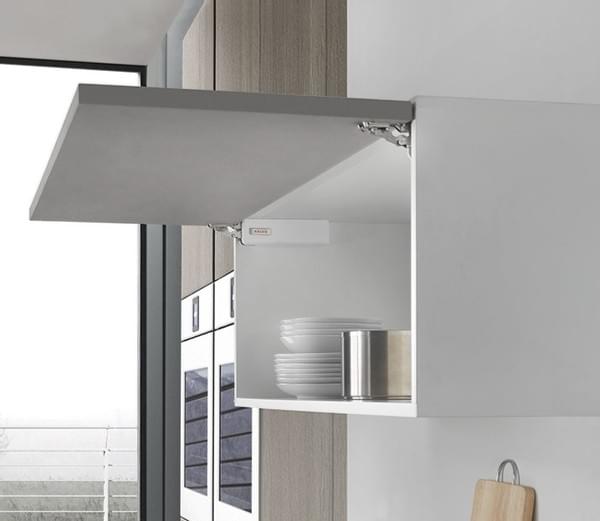

The Wind lift system is characterized by compactness and elegant design. Its movement is smooth and perfectly controlled. Wind is small and unobtrusive, enabling the maximum utilization of cabinet internal space.

• (1) "W" Wind Kit (2 Wind - Left & Right Bracket)
• Min. door height 8-5/8"
• Max. door height 15-3/4"

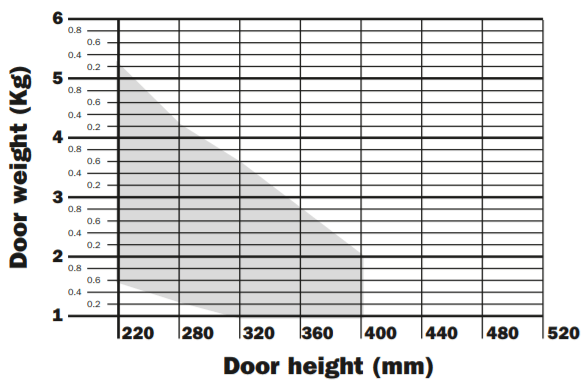

• 1kg to 5.2kg (2.2lbs to 11.5lbs) Include the weight of the decorative hardware - SEE DOWNLOADS & LINKS FOR MORE INFORMATION
• Premounted reduction clip included on bracket arm which reduces opening to 85° and is removable for opening degree up to 110°
• Push-To-Open

COVER CAPS SOLD SEPARATELY

For Accessories: CLICK HERE • Magnetic Release Device, Magnetic Holding Device, Magnetic Retaining Catch

Push-To-Open "W" Wind Lift System Kit Push-To-Open "W" Wind Lift System Kit

Suggested Retail Price:

$ 134.13

Please Login to view your pricing
