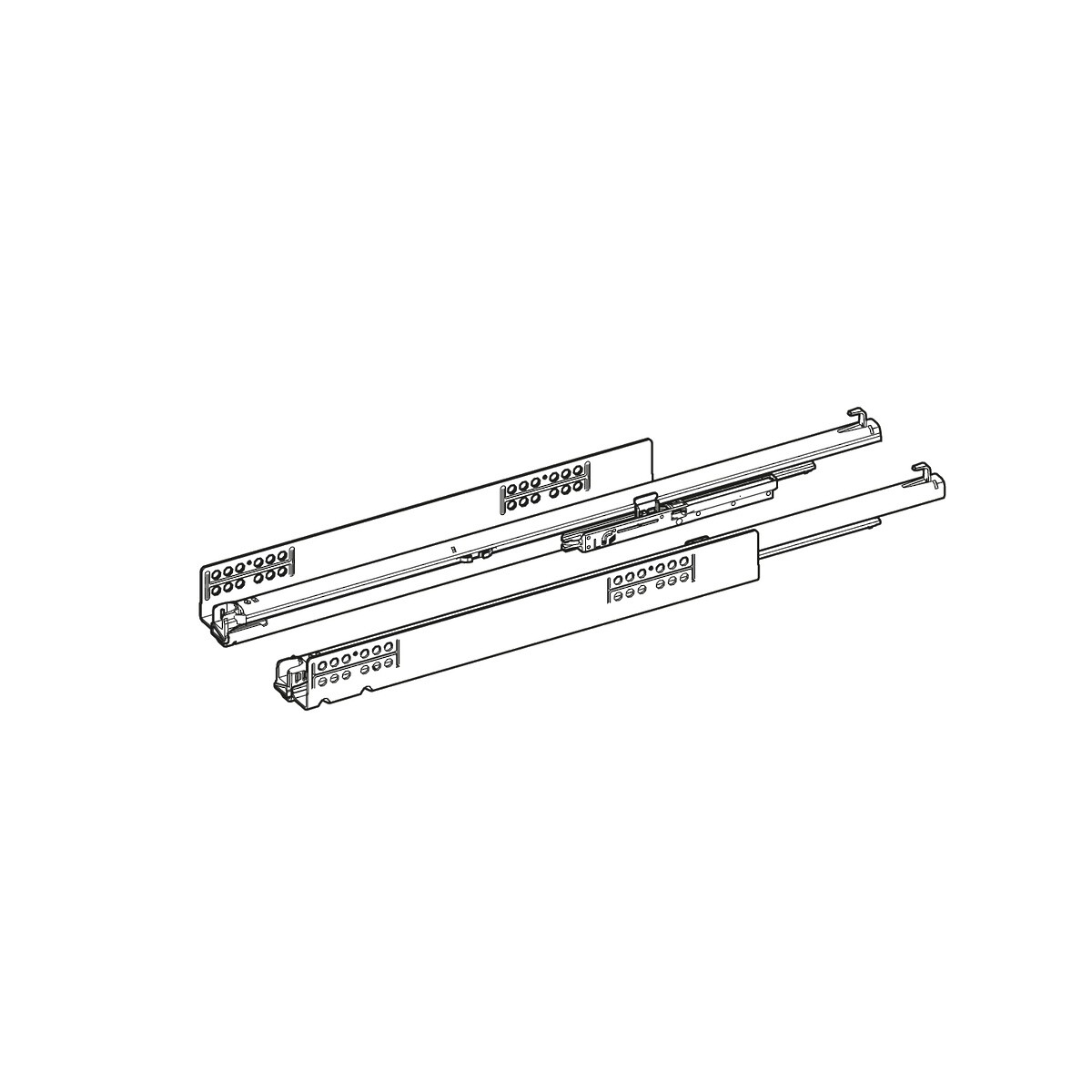

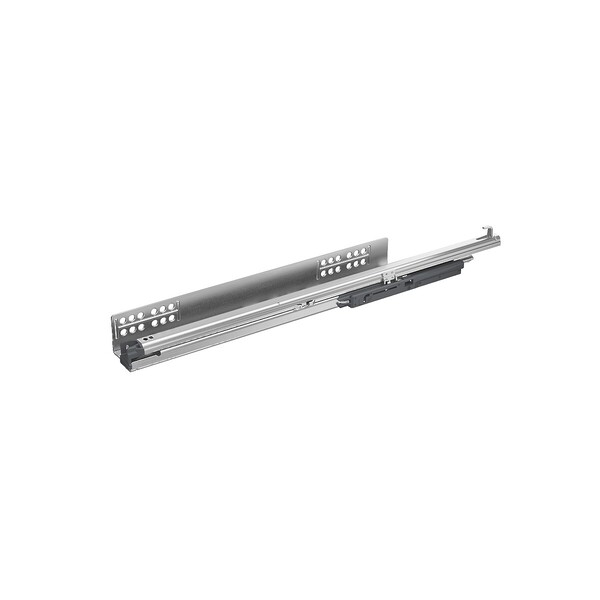

Quadro You 30kg - 450mm Left
Quadro You 30kg - 450mm Left
Quadro You 30kg - 450mm Left
SKU: 9256868
Brand
Hettich
Type
Undermount slides for Avantech You
Finish / Colour
Zinc
Length
450mm - 18"
Closing Type
Soft-Close
Load Capacity
30kg
  • Full extension runner for combining with AvanTech YOU system drawer or wooden drawer with catches
  • Integrated Silent System
  • Tool-less height adjustment up to + 3 mm
  • Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
  • Suitable for drawers with a side profile thickness of up to 16 mm
  • Load classes XS (10 kg) / M (30 kg)
  • Suitable for drawers with a side profile thickness of up to 16 mm

Optional Features:
  • Push to open Silent for Quadro V6 YOU with Silent System can be ordered separately
  • Synchronisation / multi synchronisation for Push to open Silent can be ordered separately
  • Pull-out shelf support for use with wooden drawer can be ordered separately
  • Catch for use with wooden drawer can be ordered separately
Install QuadroV6 YOU Aventech Catalogue installing PTO Silent AvenTech YOU Product Page AvenTech YOU Quality Criteria
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 20.43

Please Login to view your pricing
