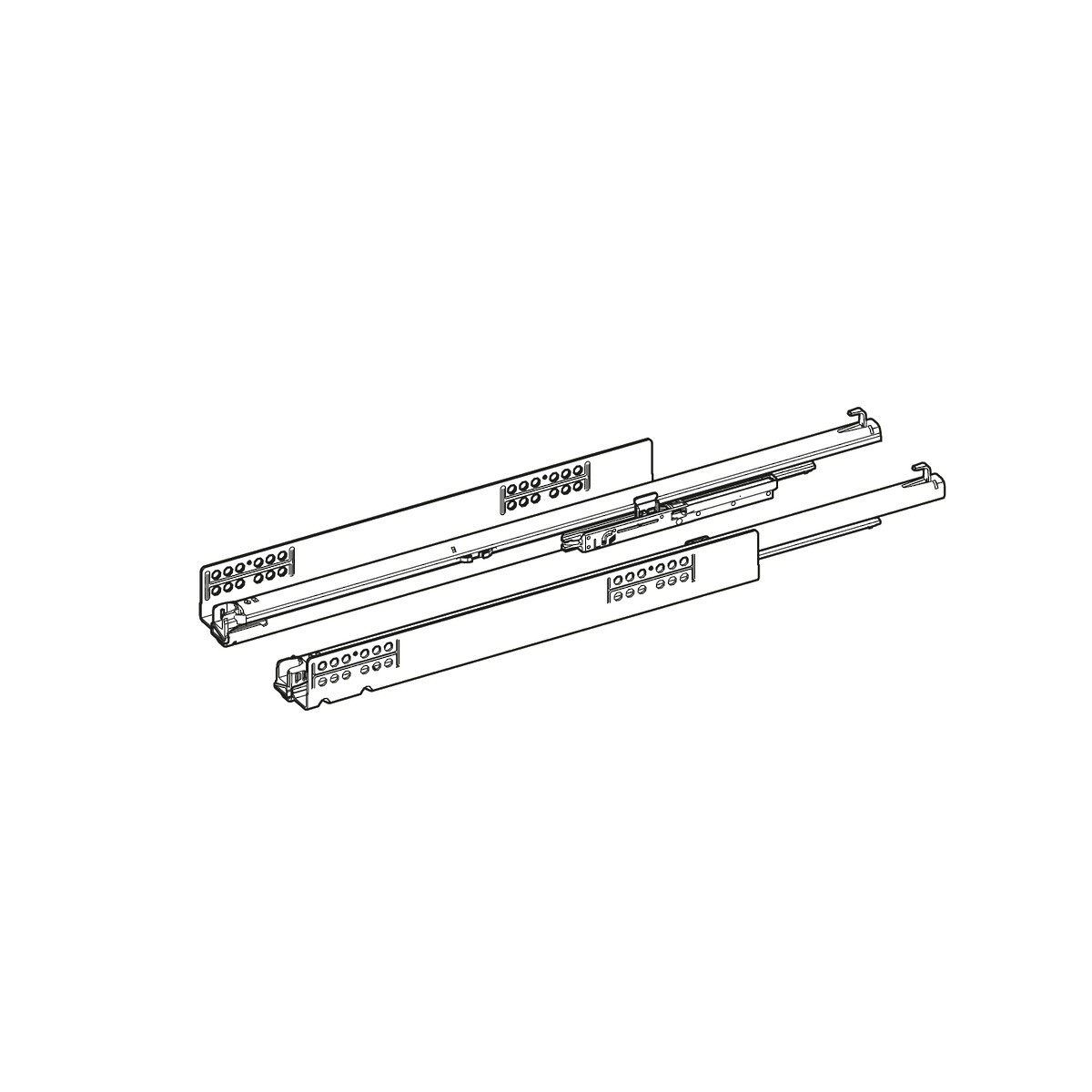

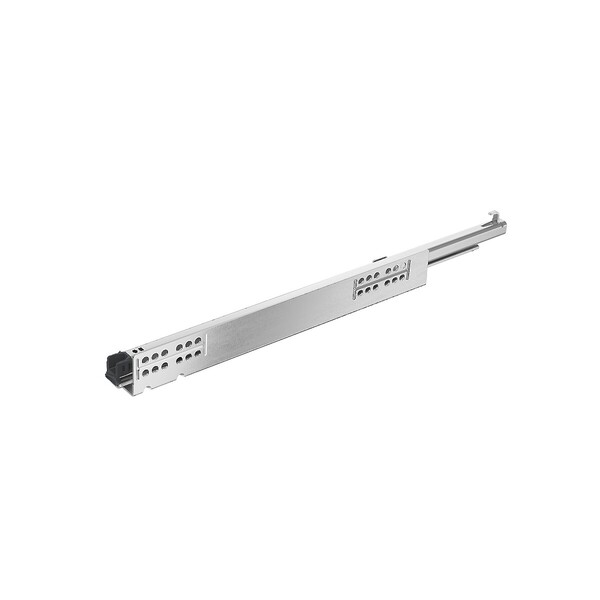

Quadro You 30kg - 550mm Right

Home > Products >Drawer Slides/Systems>Drawer Systems>Hettich Avantech YOU Drawer Systems>Quadro V6 You 30kg Glides (for Avantech You)>Quadro You 30kg - 550mm Right

Quadro You 30kg - 550mm Right

Quadro You 30kg - 550mm Right

Brand

Hettich

Type

Undermount slides for Avantech You

Finish / Colour

Zinc

Length

550mm - 22"

Closing Type

Soft-Close

Load Capacity

30kg

Full extension runner for combining with AvanTech YOU system drawer or wooden drawer with catches
Integrated Silent System
Tool-less height adjustment up to + 3 mm
Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
Suitable for drawers with a side profile thickness of up to 16 mm
Load classes XS (10 kg) / M (30 kg)
Suitable for drawers with a side profile thickness of up to 16 mm

Optional Features:

Push to open Silent for Quadro V6 YOU with Silent System can be ordered separately
Synchronisation / multi synchronisation for Push to open Silent can be ordered separately
Pull-out shelf support for use with wooden drawer can be ordered separately
Catch for use with wooden drawer can be ordered separately

Install QuadroV6 YOU Aventech Catalogue installing PTO Silent AvenTech YOU Product Page AvenTech YOU Quality Criteria

Suggested Retail Price:

$ 21.58

Please Login to view your pricing
