Soft-Close "F" Wind Lift System Kit

Application Type

Flap Door

Door Height Range

12-9/16" to 24" (320mm to 610mm)

Door Weight

1.4kg to 14.6kg (3.1lbs to 32.2lbs) Include The Weight of The Decorative Hardware

Mounting Type

Side Mount

Opening / Closing Type

Soft-Close

Opening Degree

85° to 110°

The Wind lift system is characterized by compactness and elegant design. Its movement is smooth and perfectly controlled. Wind is small and unobtrusive, enabling the maximum utilization of cabinet internal space.

• (1) "F" Wind Kit (2 Wind - Left & Right Bracket)
• Min. door height 12-9/16"
• Max. door height 24"

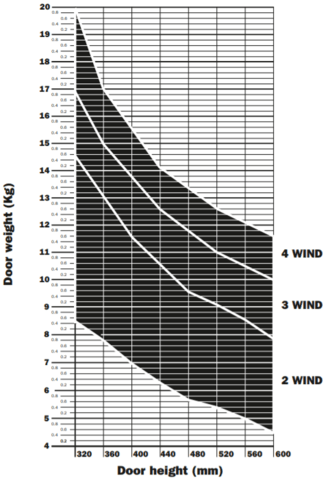

• 1.4kg to 14.6kg (3.1lbs to 32.2lbs) Include the weight of the decorative hardware - SEE DOWNLOADS & LINKS FOR MORE INFORMATION
• Premounted reduction clip included on bracket arm which reduces opening to 85° and is removable for opening degree up to 110°
• Soft-close

COVER CAPS SOLD SEPARATELY
