30KG QUADRO V6 5D (NEW)
>
30KG QUADRO V6 5D - Slides - 30 kg (NEW)
>

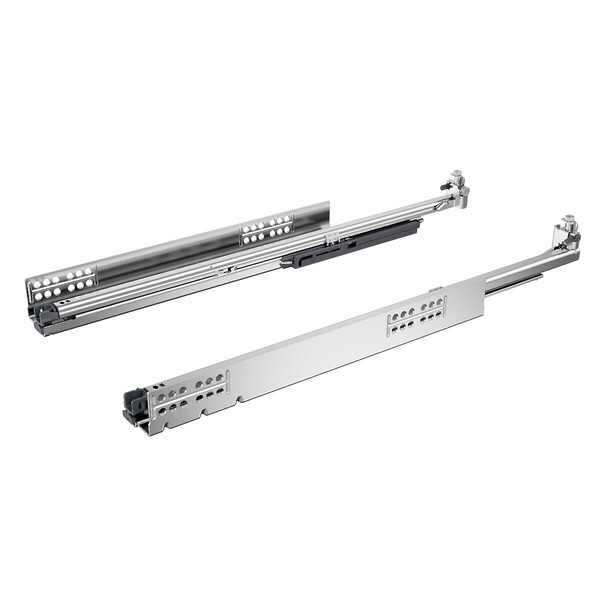

Hettich Quadro v6 5D - 300mm - Soft Close - PAIR - 30 KG
Hettich Quadro v6 5D - 300mm - Soft Close - PAIR - 30 KG
SKU: 9332704
OVERVIEW
ADDITIONAL DETAILS
DOWNLOADS
Slide on installation

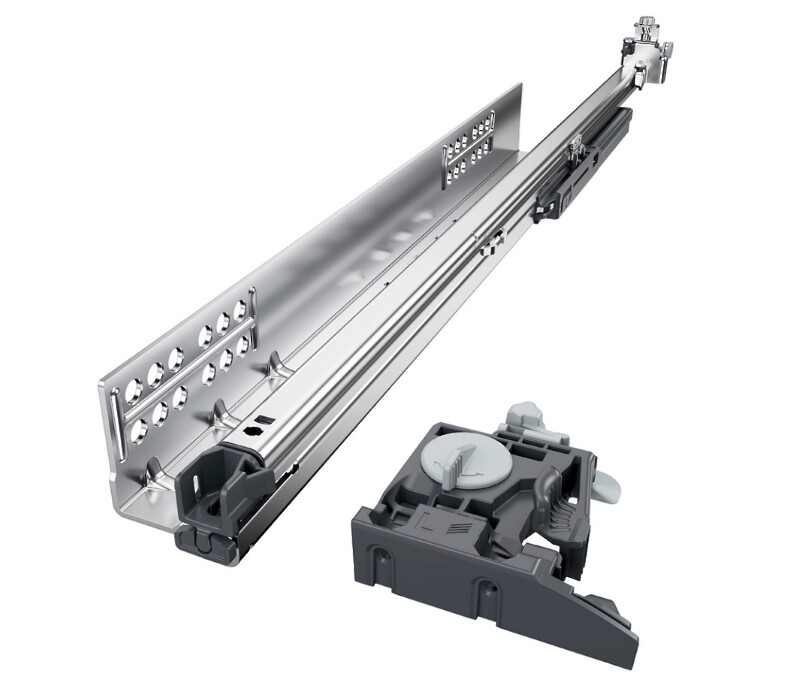

with 2D catches for height and side adjustment, integrated depth adjustment, integrated tilt adjustment, integrated radial adjustment
Integrated
Silent System

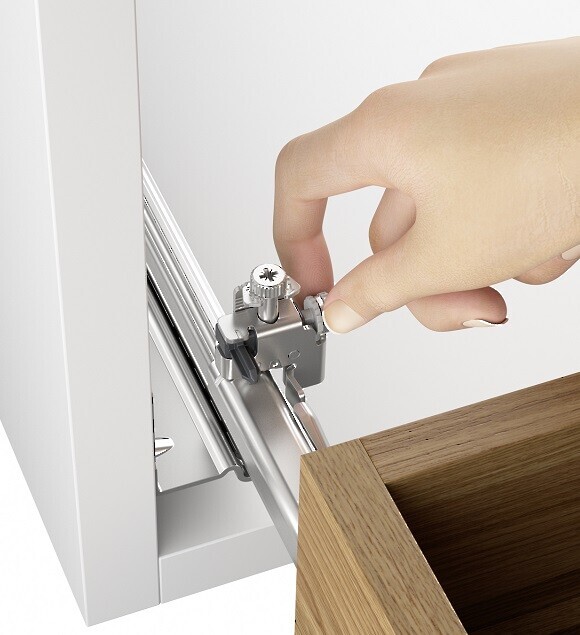

Adjustments all tool-less: height adjustment up to + 3 mm, side adjustment up to +/- 1.5 mm, depth adjustment up to + 2/- 1 mm, tilt adjustment up to + 4 mm and radial adjustment up to +/- 1.5 mm
Optional: Push to open Silent opening system
Optional: synchronisation / multi synchronisation for Push to open Silent
Optional: pull-out shelf support / pull-out shelf locating catch
Load classes XS (10 kg) / M (
30 kg
)
Catch must be ordered separately
Brand
Hettich
Type
Undermount Slides
Length
300mm - 12"
Finish / Colour
Zinc
Closing Type
Soft-Close
Load Capacity
30kg
Installing Quadro V6 5D
Quadro V6 5D - Cut Sheet
Quadro V6 5D - Data Sheet
Installation Quality Assurance
Size Selection:
600mm PAIR
550mm R
550mm L
500mm R
500mm L
450mm R
450mm L
400mm R
400mm L
350mm PAIR
300mm PAIR
250mm PAIR
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 40.78
Please Login to view your pricing
