Hettich Cross Mounting Plate - 3mm - Premounted Euro Screws

Home > Products >Hinges / Pocket Door>Hettich>Hettich Cross Mounting Plates>Hettich Cross Mounting Plates - Premounted Euro Screw>Hettich Cross Mounting Plate - 3mm - Premounted Euro Screws

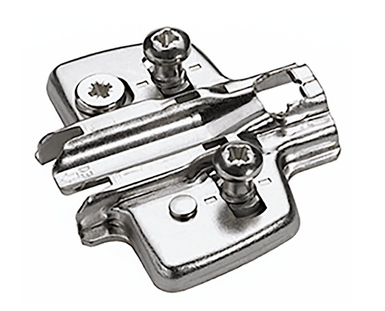

Hettich Cross Mounting Plate - 3mm - Premounted Euro Screws

Hettich Cross Mounting Plate - 3mm - Premounted Euro Screws

Hettich Cross Mounting Plate - 3mm - Premounted Euro Screws

Brand

Hettich

Plates Mounting Style

Mounting Plate

Plates Height / Reinforcement

3mm

Plates Mounting

5mm - Euro Screw-in Pre-Mounted

Cabinet Construction

5/8" Side Gables Construction

Material / Finishes

Zinc / Steel

cross mounting plate with Direct height adjustment
For Sensys, Novisys and Intermat
Quality classification under EN 15570, Level 3

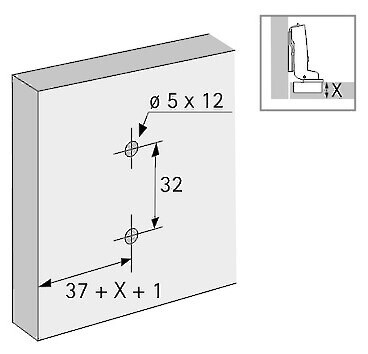

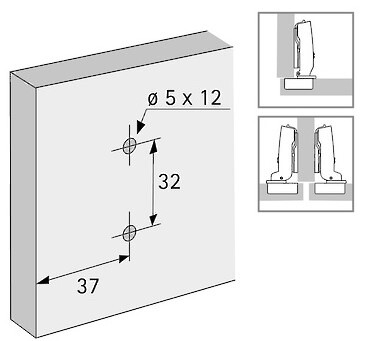

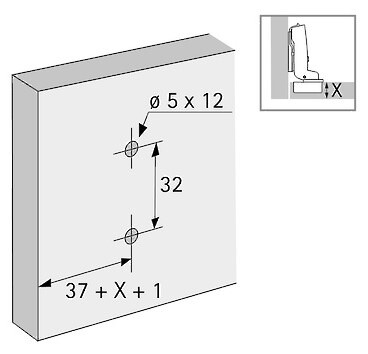

For Hole product-specs__row 37 x 32 mm
Installation with Euro screws (for drilling ø 5 x 12 mm)
Distance 3.0 mm
Adjustment range + 2 mm / - 2 mm
steel nickel plated
Box Qty. 200

Plates Mounting Style:

Mounting Plate Mounting Plate - Offset Wood Screws Face Frame Mounting Plate

Plates Height / Reinforcement:

0mm 1.5mm 3mm 5mm

Plates Mounting:

5mm - Euro Screw-in Pre-Mounted Premounted Wood Screw-On 5mm - Expansion Dowels Premounted Wood Screw-On - Offset Wood Screws Wood Screw-On

Cabinet Construction:

3/4" Side Gables Construction 5/8" Side Gables Construction

Suggested Retail Price:

$ 1.42

Please Login to view your pricing
