Hettich Pie Cut Lazy Susan - Fix Fast - Blum Pattern
Hettich Pie Cut Lazy Susan - Fix Fast - Blum Pattern
Hettich Pie Cut Lazy Susan - Fix Fast - Blum Pattern
Hettich Pie Cut Lazy Susan - Fix Fast - Blum Pattern
Hettich Pie Cut Lazy Susan - Fix Fast - Blum Pattern
Hettich Pie Cut Lazy Susan - Fix Fast - Blum Pattern
SKU: 9090119
View related products
Brand
Hettich
Overlay
Pie Corner
Opening Degree
50° / 65°
Closing Type
Self / Regular-Close
Hinge Mounting
Fix Fast
Material / Finishes
Zinc / Steel

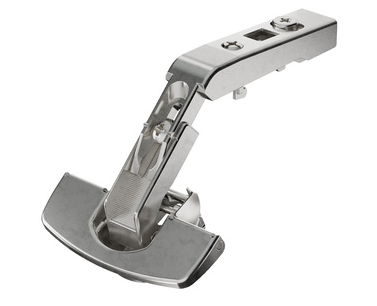

  • Hinge for corner cabinet folding doors
  • Without self closing feature (Intermat 9930)
  • Quality classification under EN 15570, Level 2
  • Opening angle 50° / 65°
  • For door thickness 15 - 21 mm
  • Door mounting option overlay

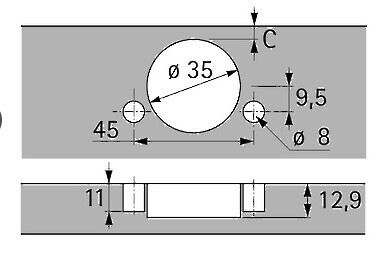

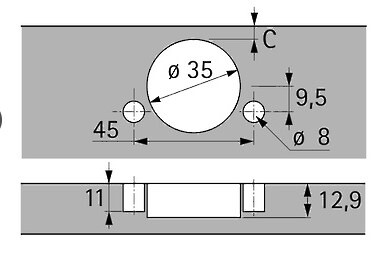

  • Drilling pattern TB 45 x 9,5 mm
  • Cup depth 12.8 mm
  • Installation Fix fast assembly
  • Integrated diagonal adjustment +9.5 mm / -9.5 mm

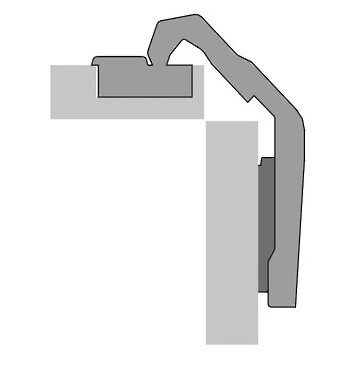

  • Integrated overlay adjustment, see sketch
  • Integrated depth adjustment, see sketch
  • Height adjustment at mounting plate
  • Steel / die-cast zinc nickel plated
  • Box Qty. 50
Overlay:
Full Overlay Half Overlay Inset 45° Corner (Door) to Corner (Gable) Blind Corner Pie Corner 45° Corner Full Overlay - Thin Doors
Opening Degree:
110° 165º "Zero Protrusion" 95° 50° / 65°
Closing Type:
Soft-Close Self / Regular-Close
Hinge Mounting:
Knock-in Dowel Fix Fast
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 10.92

Please Login to view your pricing
