Home > Products >Hinges / Pocket Door>Hettich>Hettich Soft and Self Close - Blum Pattern 45mm>Hettich 110º Soft Close Hinge - Blum Pattern>Hettich 110º Soft Close F/O - Dowel - Blum Pattern

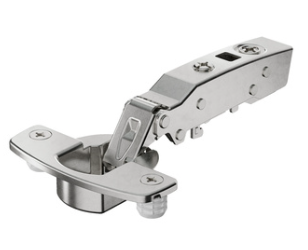

Hettich 110º Soft Close F/O - Dowel - Blum Pattern
Hettich 110º Soft Close F/O - Dowel - Blum Pattern
Hettich 110º Soft Close F/O - Dowel - Blum Pattern
Hettich 110º Soft Close F/O - Dowel - Blum Pattern
Hettich 110º Soft Close F/O - Dowel - Blum Pattern
Hettich 110º Soft Close F/O - Dowel - Blum Pattern
SKU: 9071226
View related products
Brand
Hettich
Overlay
Full Overlay
Opening Degree
110°
Closing Type
Soft-Close
Hinge Mounting

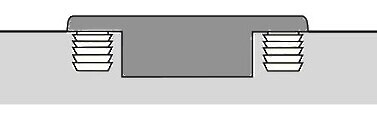

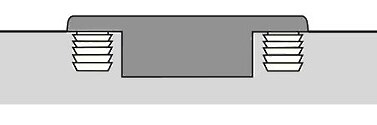

Knock-in Dowel
Material / Finishes
Zinc / Steel
  • Sensys 110° hinge
  • With integrated Silent System, with self closing feature (Sensys 8645i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110°
  • For door thickness 15 - 24 mm
  • Door mounting option overlay

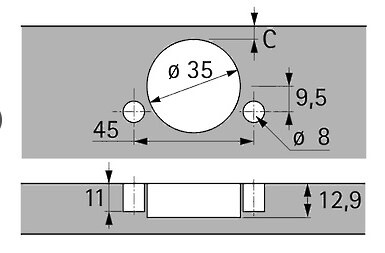

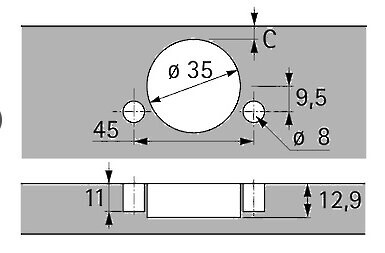

  • Drilling pattern TB 45 x 9,5 mm
  • Cup depth 12.8 mm
  • Installation for pressing in
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • Steel nickel plated
  • Box Qty 200
Overlay:
Full Overlay Half Overlay Inset 45° Corner (Door) to Corner (Gable) Blind Corner Pie Corner 45° Corner Full Overlay - Thin Doors
Opening Degree:
110° 165º "Zero Protrusion" 95° 50° / 65°
Closing Type:
Soft-Close Self / Regular-Close
Hinge Mounting:
Knock-in Dowel Fix Fast
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 8.04

Please Login to view your pricing

Recently Viewed Products
Salice - 110° Screw-on Inset Self-Close Hinge
VIEW
C2P6P99
Salice - 110° Screw-on Inset Self-Close Hinge
VIEW →
Salice - Negative -45° Angle Dowel Self-Close Clip-on Hinge
VIEW
C2RBH99
Salice - Negative -45° Angle Dowel Self-Close Clip-on Hinge
VIEW →
Hettich 110º Soft Close F/O - Dowel - Blum Pattern
VIEW
9071226
Hettich 110º Soft Close F/O - Dowel - Blum Pattern
VIEW →
Salice - 110° Screw-on Inset Soft-Close Hinge
VIEW
C1P6PE9
Salice - 110° Screw-on Inset Soft-Close Hinge
VIEW →
Salice - 110° Knock-in Full Overlay Soft-Close Hinge
VIEW
C1R6AE9
Salice - 110° Knock-in Full Overlay Soft-Close Hinge
VIEW →
Salice - 110° Screw-on Full Overlay Soft-Close Hinge
VIEW
C1P6AE9
Salice - 110° Screw-on Full Overlay Soft-Close Hinge
VIEW →

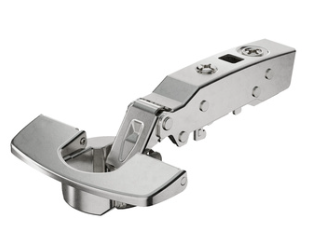

Hettich 110º Soft Close F/O - Fix Fast - Blum Pattern
