Hettich Pie Cut Lazy Susan - Dowel - Blum Pattern

Hettich Pie Cut Lazy Susan - Dowel - Blum Pattern

Hettich Pie Cut Lazy Susan - Dowel - Blum Pattern

Hettich Pie Cut Lazy Susan - Dowel - Blum Pattern

Hettich Pie Cut Lazy Susan - Dowel - Blum Pattern

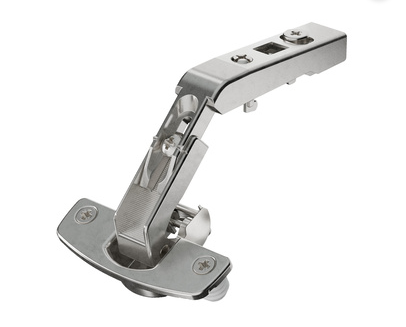

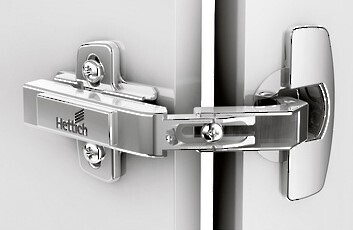

Hinge for corner cabinet folding doors
Without self closing feature (Intermat 9930)
Quality classification under EN 15570, Level 2
Opening angle 50° / 65°
For door thickness 15 - 21 mm

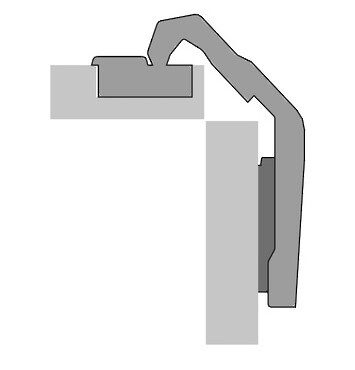

Door mounting option overlay

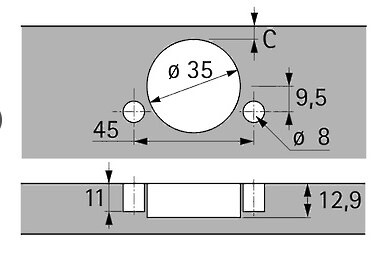

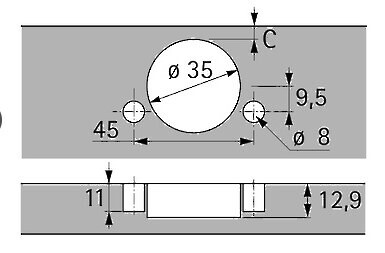

Drilling pattern TB 45 x 9,5 mm
Cup depth 12.8 mm
Installation for pressing in
Integrated diagonal adjustment +9.5 mm / -9.5 mm
Integrated overlay adjustment, see sketch
Integrated depth adjustment, see sketch
Height adjustment at mounting plate
Steel / die-cast zinc nickel plated
Box Qty. 50

Brand

Hettich

Closing Type

Self / Regular-Close

Hinge Mounting

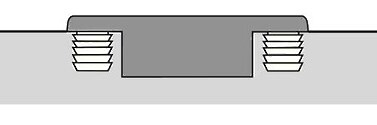

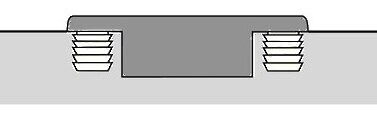

Knock-in Dowel

Material / Finishes

Zinc / Steel

Overlay

Pie Corner

Suggested Retail Price:

$ 8.40

Please Login to view your pricing
