Hettich 110º Soft Close H/O - Dowel - Blum Pattern
Hettich 110º Soft Close H/O - Dowel - Blum Pattern
Hettich 110º Soft Close H/O - Dowel - Blum Pattern
Hettich 110º Soft Close H/O - Dowel - Blum Pattern
Hettich 110º Soft Close H/O - Dowel - Blum Pattern
Hettich 110º Soft Close H/O - Dowel - Blum Pattern
SKU: 9073621
View related products
Brand
Hettich
Overlay
Half Overlay
Opening Degree
110°
Closing Type
Soft-Close
Hinge Mounting
Knock-in Dowel
Material / Finishes
Zinc / Steel

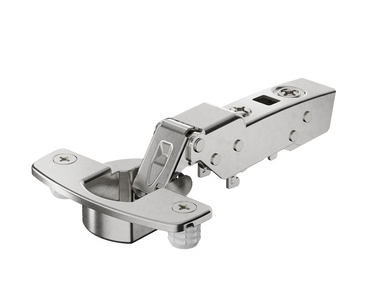

  • Sensys 110° hinge
  • With integrated Silent System, with self closing feature (Sensys 8645i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110°
  • For door thickness 15 - 24 mm
  • Door mounting option half overlay

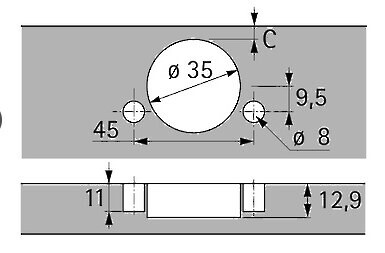

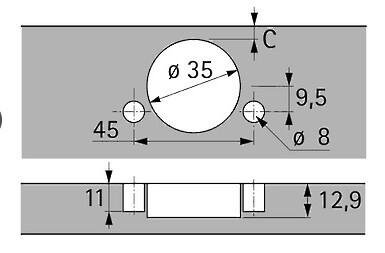

  • Drilling pattern TB 45 x 9,5 mm
  • Cup depth 12.8 mm

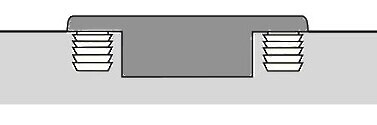

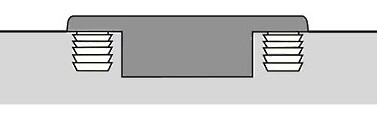

  • Installation for pressing in
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • Steel nickel plated
  • Box Qty. 50
Overlay:
Full Overlay Half Overlay Inset 45° Corner (Door) to Corner (Gable) Blind Corner Pie Corner 45° Corner Full Overlay - Thin Doors
Opening Degree:
110° 165º "Zero Protrusion" 95° 50° / 65°
Closing Type:
Soft-Close Self / Regular-Close
Hinge Mounting:
Knock-in Dowel Fix Fast
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 10.14

Please Login to view your pricing
