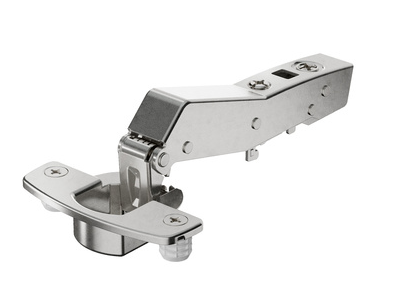

Hettich 45° Angle Hinge Soft Close - Dowel - Blum Pattern
Hettich 45° Angle Hinge Soft Close - Dowel - Blum Pattern
Hettich 45° Angle Hinge Soft Close - Dowel - Blum Pattern
Hettich 45° Angle Hinge Soft Close - Dowel - Blum Pattern
Hettich 45° Angle Hinge Soft Close - Dowel - Blum Pattern
SKU: 9088043
View related products
Brand
Hettich
Closing Type
Soft-Close
Opening Degree
95°
Hinge Mounting
Knock-in Dowel
Material / Finishes
Zinc / Steel
Angle Degree

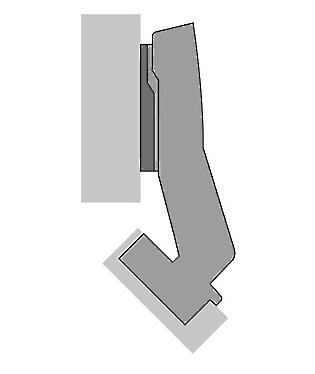

45° Angle
  • Sensys angle hinge W45
  • With integrated Silent System, with self closing feature (Sensys 8639i W45)
  • Quality classification under EN 15570, Level 3
  • Opening angle 95°
  • For door thickness 15 - 28 mm
  • Door mounting option overlay

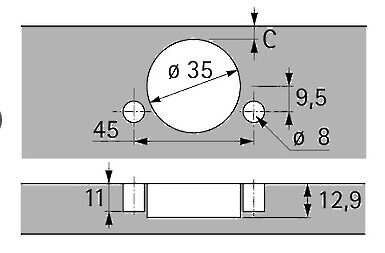

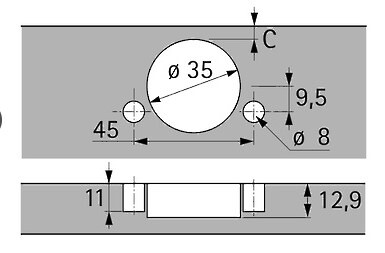

  • Drilling pattern TB 45 x 9,5 mm
  • Cup depth 12.8 mm

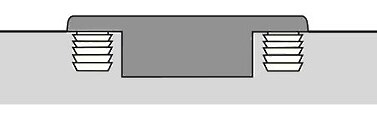

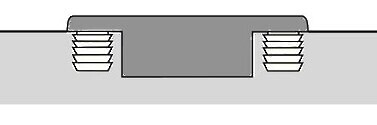

  • Installation for pressing in
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel nickel plated
  • Box Qty. 50
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 15.46

Please Login to view your pricing
