Hettich 45° Angle Alt. Hinge Soft Close - Fix Fast - Blum Pattern

Hettich 45° Angle Alt. Hinge Soft Close - Fix Fast - Blum Pattern

Hettich 45° Angle Alt. Hinge Soft Close - Fix Fast - Blum Pattern

Hettich 45° Angle Alt. Hinge Soft Close - Fix Fast - Blum Pattern

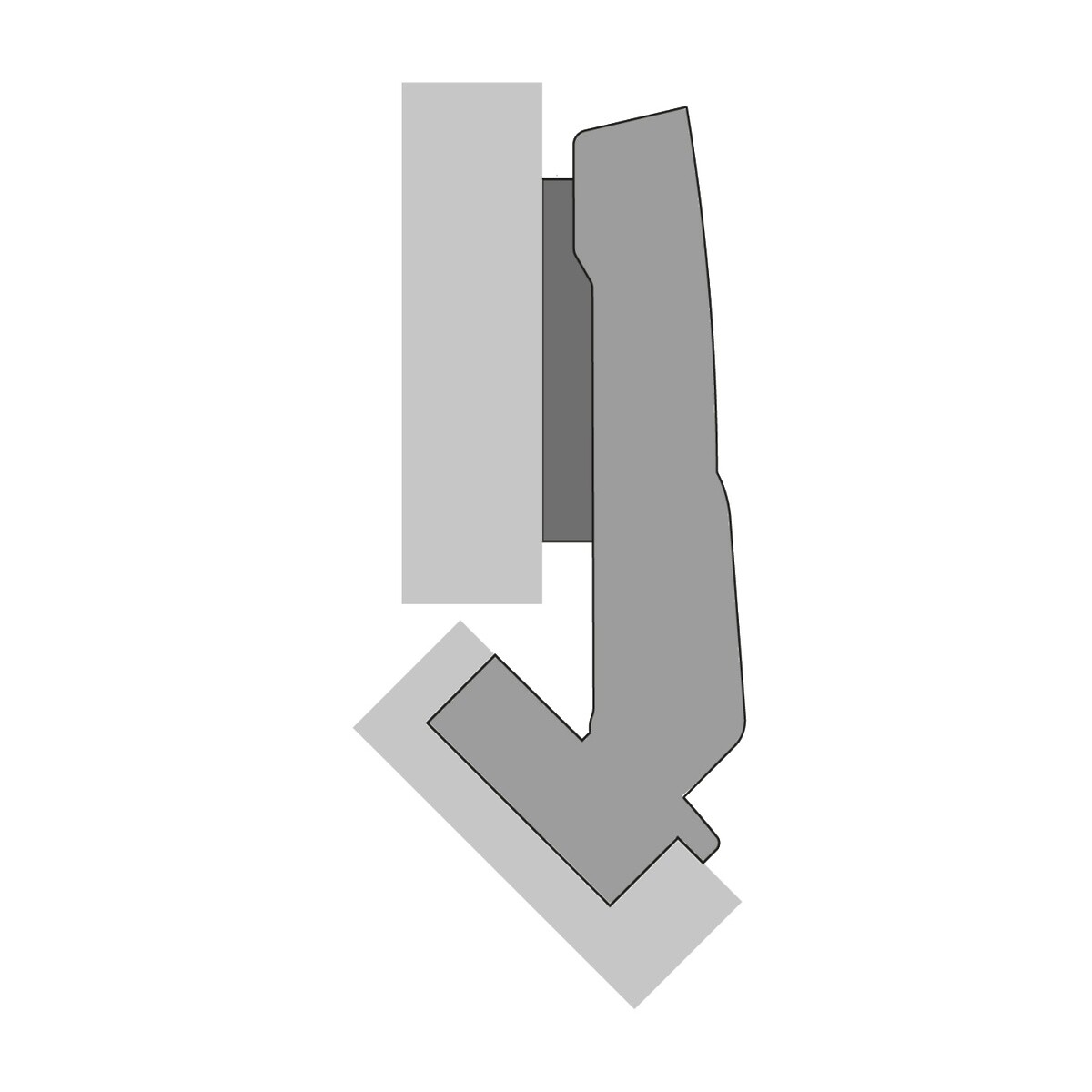

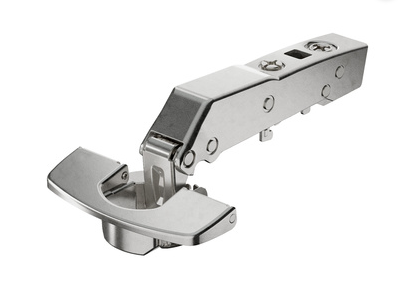

Sensys angle hinge W45
With integrated Silent System, with self closing feature (Sensys 8639i W45)
Quality classification under EN 15570, Level 3
Opening angle 95°
For door thickness 15 - 28 mm

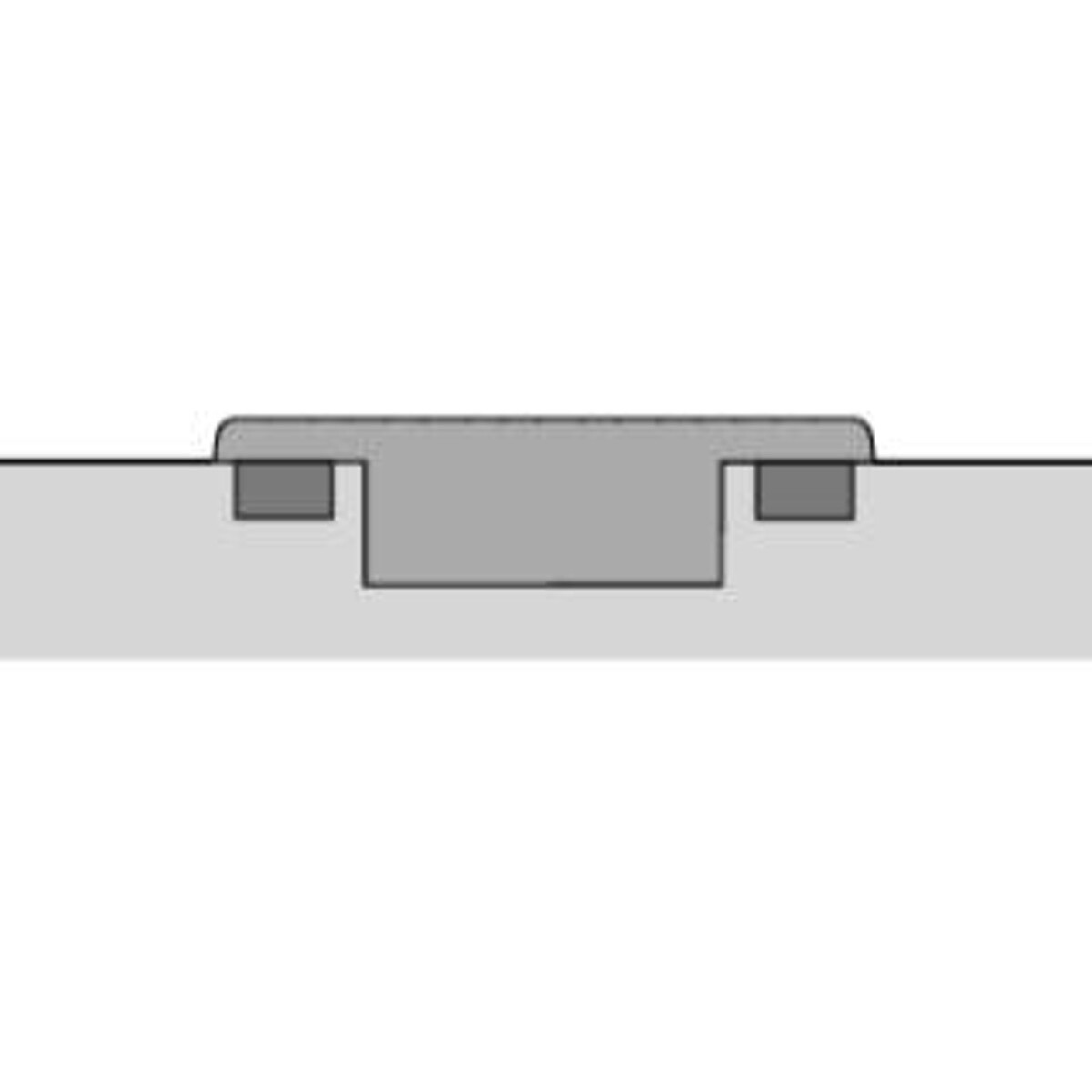

Door mounting option overlay

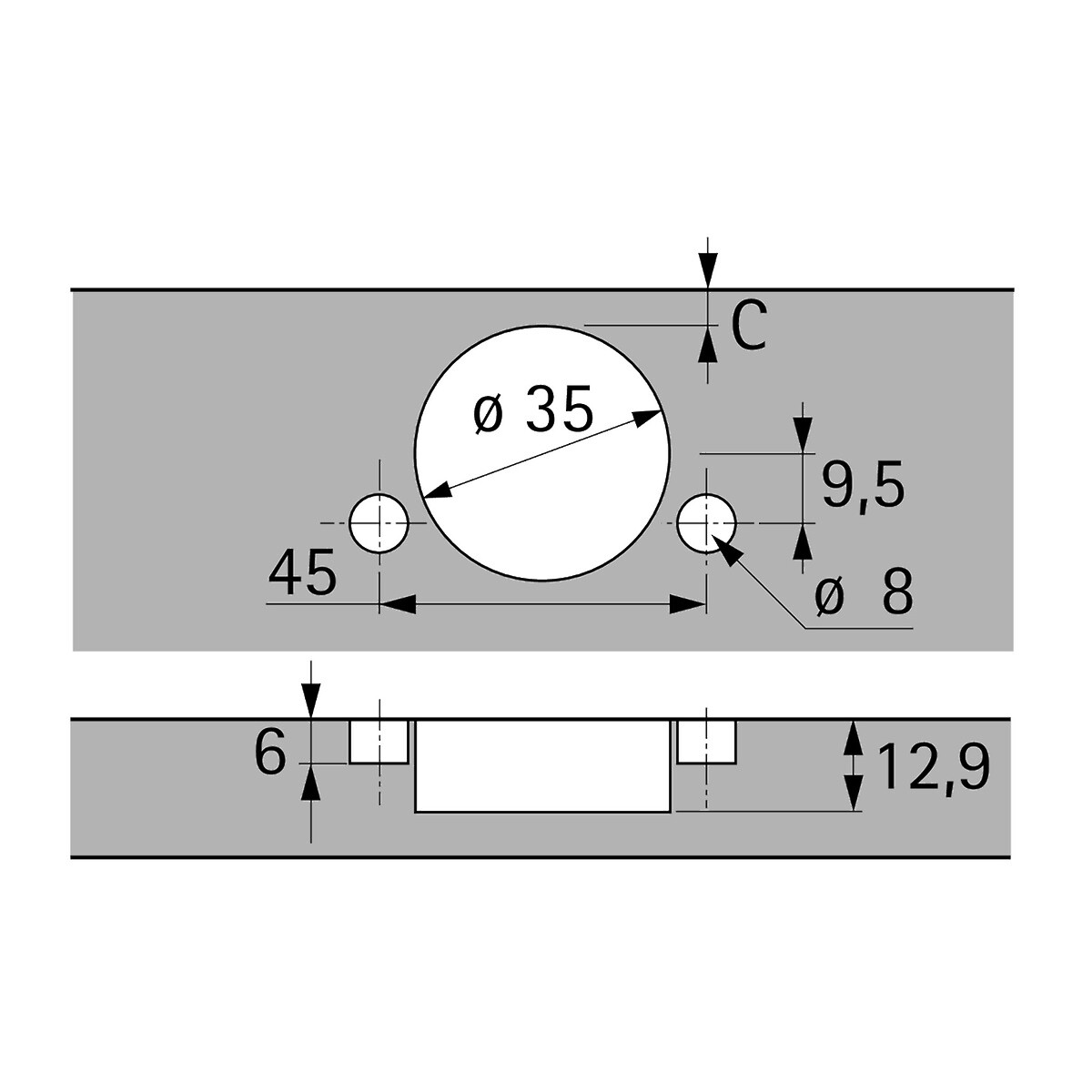

Drilling pattern TB 45 x 9,5 mm
Cup depth 12.8 mm
Installation Fix fast assembly
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
steel nickel plated
Box Qty. 50

Brand

Hettich

Closing Type

Soft-Close

Opening Degree

95°

Hinge Mounting

Fix Fast

Material / Finishes

Zinc / Steel

Angle Degree

45° Angle

Suggested Retail Price:

$ 16.40

Please Login to view your pricing
