Hettich 165º Zero Protrusion **SELF** Close - Screw On - Hettich Pattern

Hettich 165º Zero Protrusion **SELF** Close - Screw On - Hettich Pattern

Hettich 165º Zero Protrusion **SELF** Close - Screw On - Hettich Pattern

Hettich 165º Zero Protrusion **SELF** Close - Screw On - Hettich Pattern

Hettich 165º Zero Protrusion **SELF** Close - Screw On - Hettich Pattern

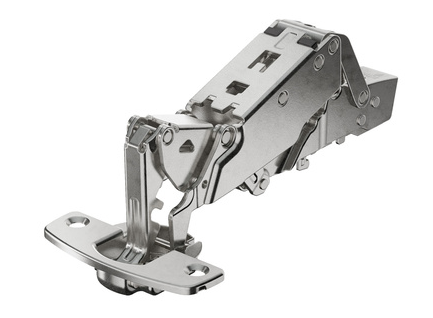

Sensys wide angle hinge, with zero protrusion
Without Silent System, with self closing feature (Sensys 8657)
Quality classification under EN 15570, Level 3
Opening angle 165°
For door thickness 15 - 32 mm
Door mounting option overlay

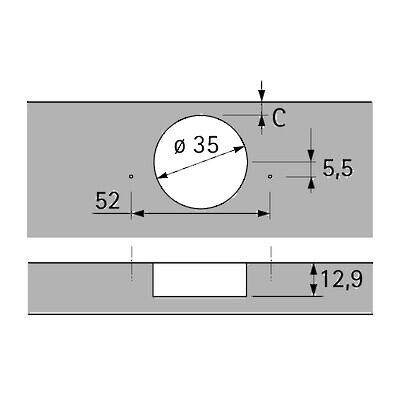

Drilling pattern TH 52 x 5,5 mm
Cup depth 11.6 mm
Installation for screwing on
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Steel / die-cast zinc nickel plated
Box Qty. 50

Brand

Hettich

Closing Type

Self / Regular-Close

Opening Degree

165º "Zero Protrusion"

Hinge Mounting

Screw-on

Material / Finishes

Zinc / Steel

Overlay

Full Overlay

Suggested Retail Price:

$ 10.10

Please Login to view your pricing
