Hettich 165º Zero Protrusion Soft Close F/O - Screw On - Hettich Pattern
Hettich 165º Zero Protrusion Soft Close F/O - Screw On - Hettich Pattern
Hettich 165º Zero Protrusion Soft Close F/O - Screw On - Hettich Pattern
Hettich 165º Zero Protrusion Soft Close F/O - Screw On - Hettich Pattern
Hettich 165º Zero Protrusion Soft Close F/O - Screw On - Hettich Pattern
Hettich 165º Zero Protrusion Soft Close F/O - Screw On - Hettich Pattern
SKU: 9099540
View related products
Brand
Hettich
Closing Type
Soft-Close
Opening Degree
165º "Zero Protrusion"
Hinge Mounting
Screw-on
Material / Finishes
Zinc / Steel
Overlay
Full Overlay

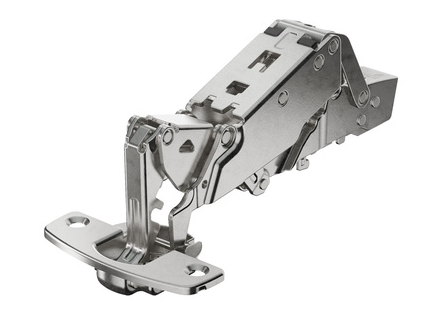

  • Sensys wide angle hinge, with zero protrusion
  • With integrated Silent System, with self closing feature (Sensys 8657i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 165°
  • For door thickness 15 - 32 mm
  • Door mounting option overlay

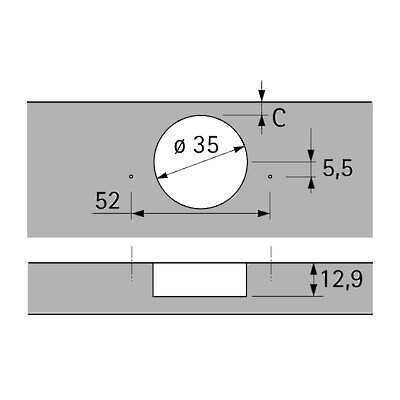

  • Drilling pattern TH 52 x 5,5 mm
  • Cup depth 11.6 mm
  • Installation for screwing on
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • Steel / die-cast zinc nickel plated
  • Box Qty. 50
Overlay:
Full Overlay Half Overlay Inset Blind Corner
Opening Degree:
110° 165º "Zero Protrusion" 95°
Closing Type:
Soft-Close Self / Regular-Close
Hinge Mounting:
Screw-on Knock-in Dowel Fix Fast
Closing Type:
SOFT CLOSE
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 11.62
