Hettich 45° Angle Soft-Close Hinge | Screw-On 52mm

Home > Products >Hinges/Pocket Door>Hettich>Hettich Soft and Self Close - Hettich Pattern 52mm>Hettich Angel Soft Close - Hettich Pattern>Hettich 45° Angle Hinge Soft Close - Screw On - Hettich Pattern

Hettich 45° Angle Hinge Soft Close - Screw On - Hettich Pattern

Hettich 45° Angle Hinge Soft Close - Screw On - Hettich Pattern

Hettich 45° Angle Hinge Soft Close - Screw On - Hettich Pattern

Hettich 45° Angle Hinge Soft Close - Screw On - Hettich Pattern

Brand

Hettich

Closing Type

Soft-Close

Opening Degree

95°

Hinge Mounting

Screw-on

Material / Finishes

Zinc / Steel

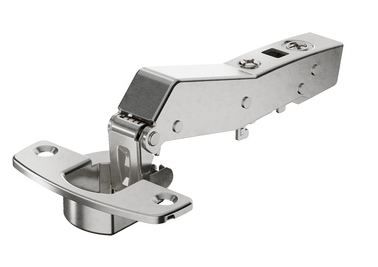

Sensys angle hinge W45
With integrated Silent System, with self closing feature (Sensys 8639i W45)
Quality classification under EN 15570, Level 3
Opening angle 95°
For door thickness 15 - 28 mm
Door mounting option overlay

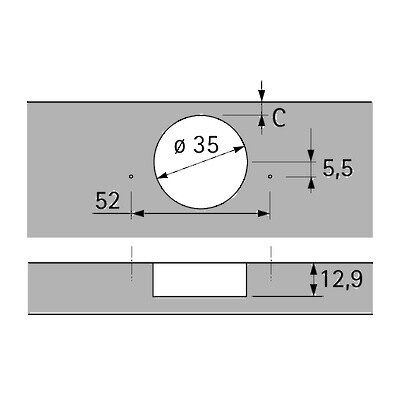

Drilling pattern TH 52 x 5,5 mm
Cup depth 12.8 mm
Installation for screwing on
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
steel nickel plated
Box Qty. 50

Suggested Retail Price:

$ 15.20

Please Login to view your pricing
