Hettich 110º Soft Close F/O - Dowel - Hettich Pattern

Hettich 110º Soft Close F/O - Dowel - Hettich Pattern

Hettich 110º Soft Close F/O - Dowel - Hettich Pattern

Hettich 110º Soft Close F/O - Dowel - Hettich Pattern

Hettich 110º Soft Close F/O - Dowel - Hettich Pattern

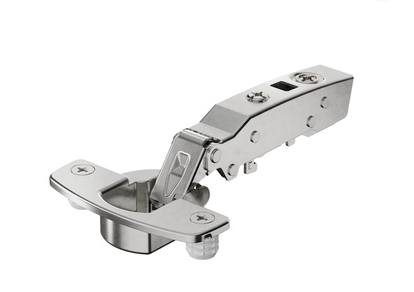

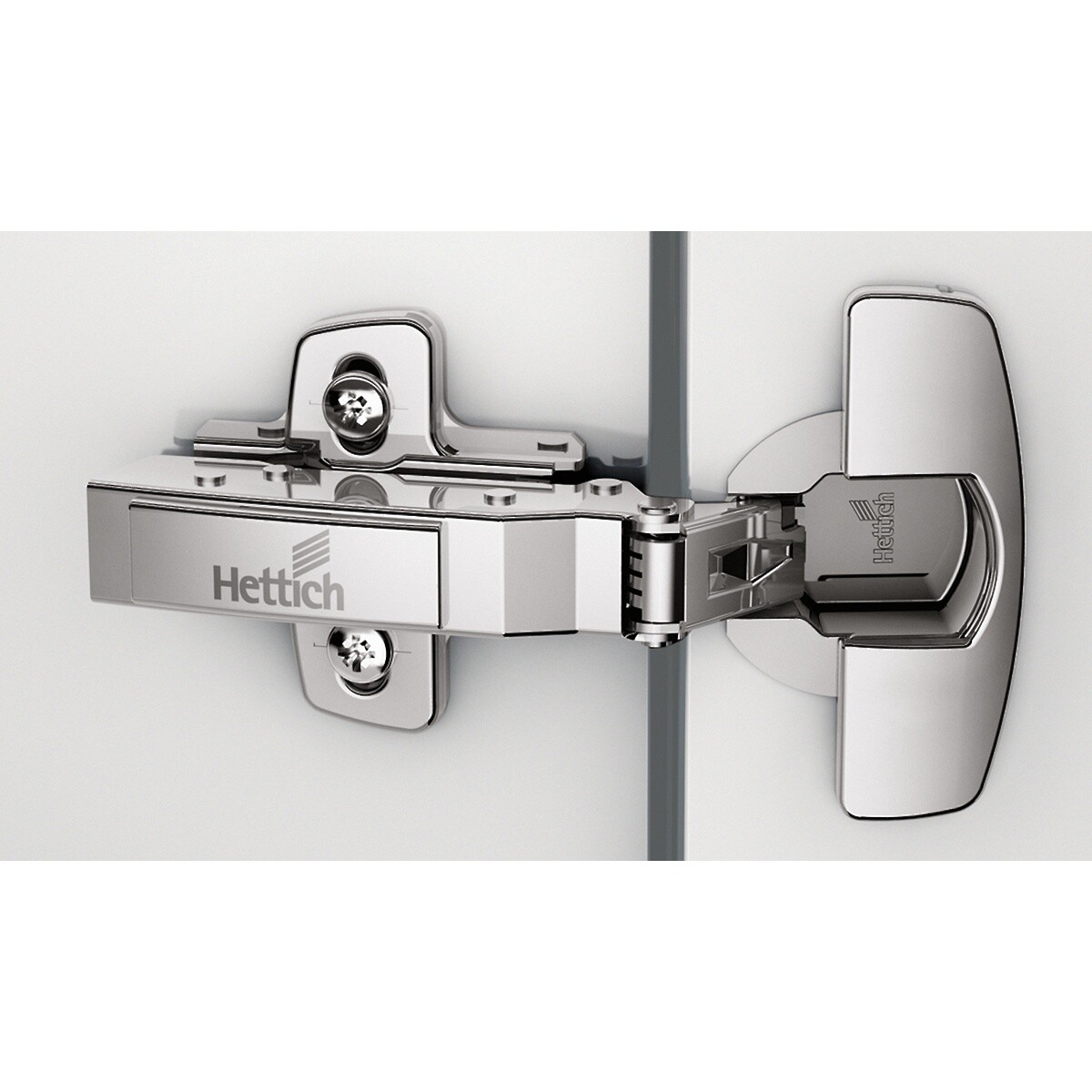

Sensys 110° hinge
With integrated Silent System, with self closing feature (Sensys 8645i)
Quality classification under EN 15570, Level 3
Opening angle 110°
For door thickness 15 - 24 mm

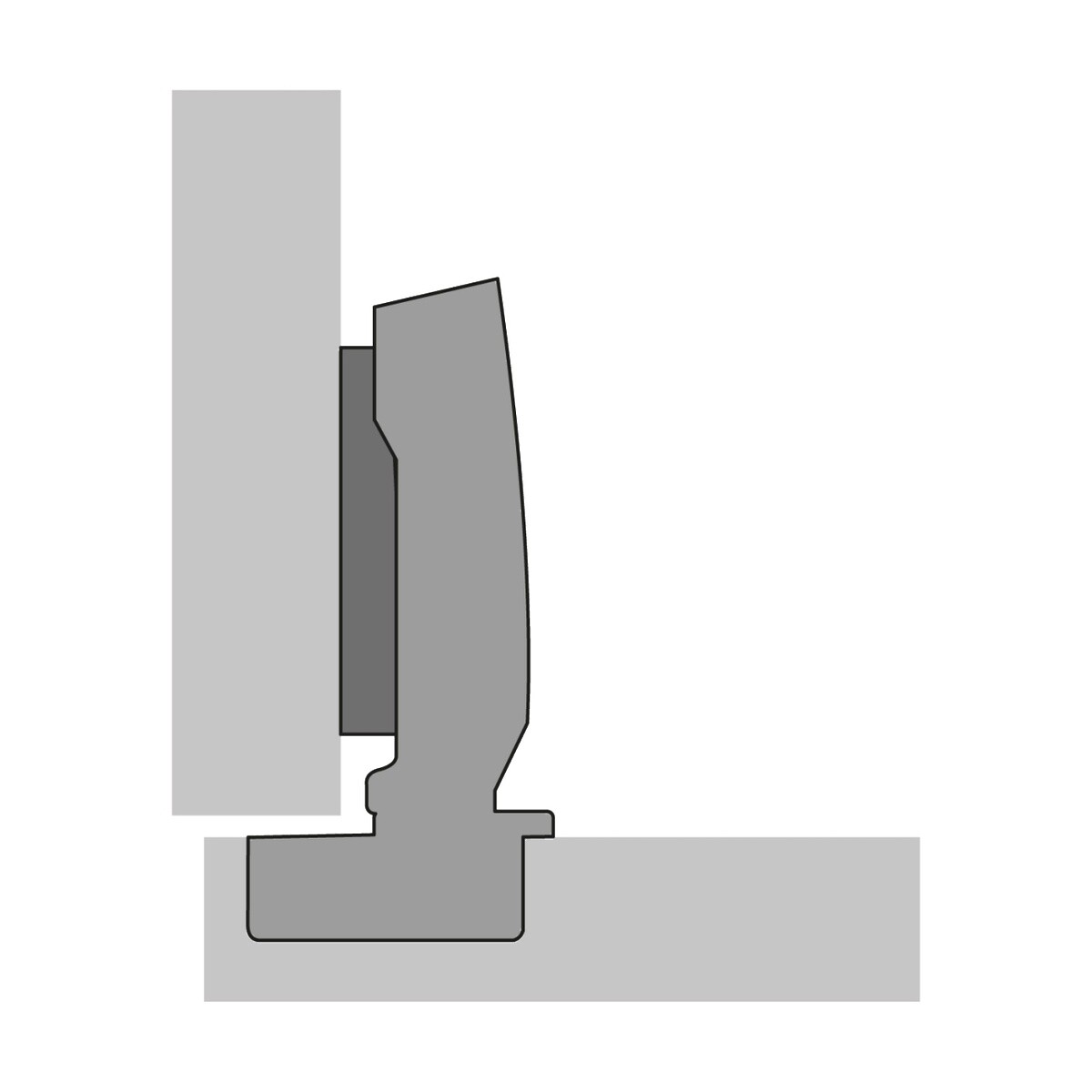

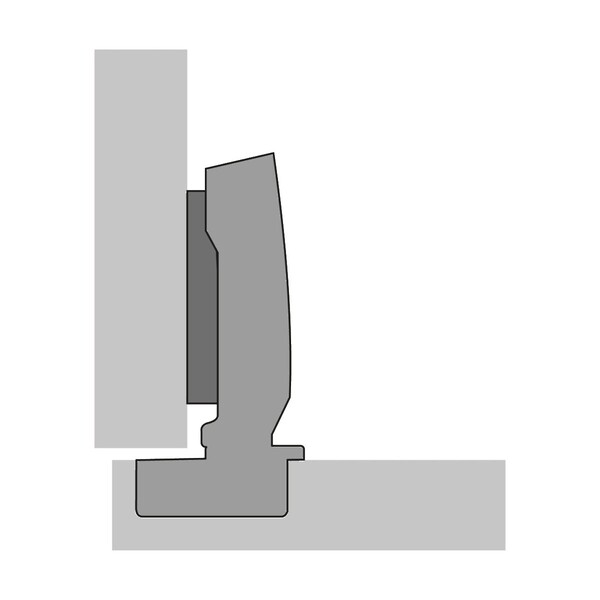

Door mounting option overlay

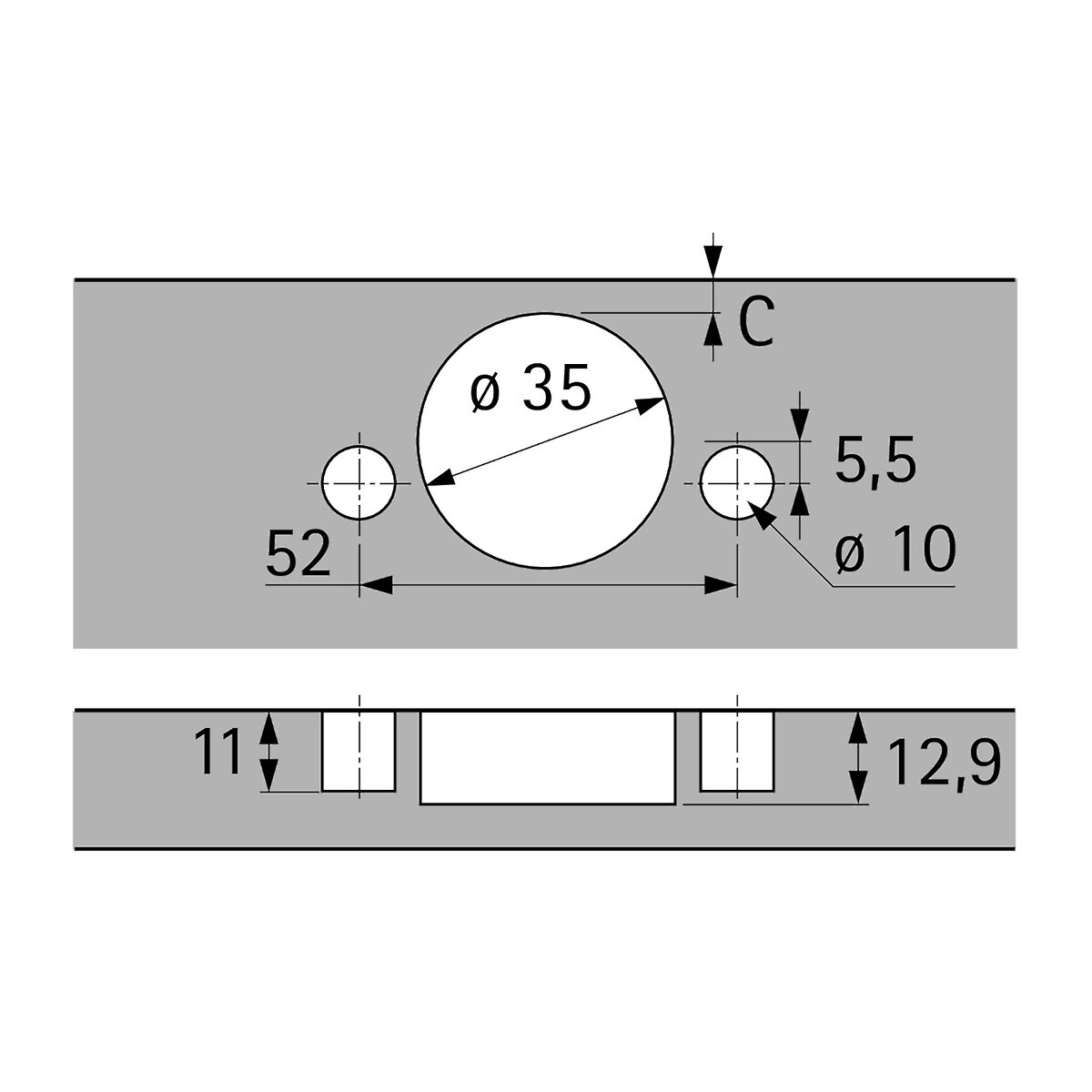

Drilling pattern TH 52 x 5,5 mm
Cup depth 12.8 mm
Installation for screwing on
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Steel nickel plated
Box Qty. 200

Brand

HETTICH

Closing Type

SOFT CLOSE

Opening Degree

110°

Hinge Mounting

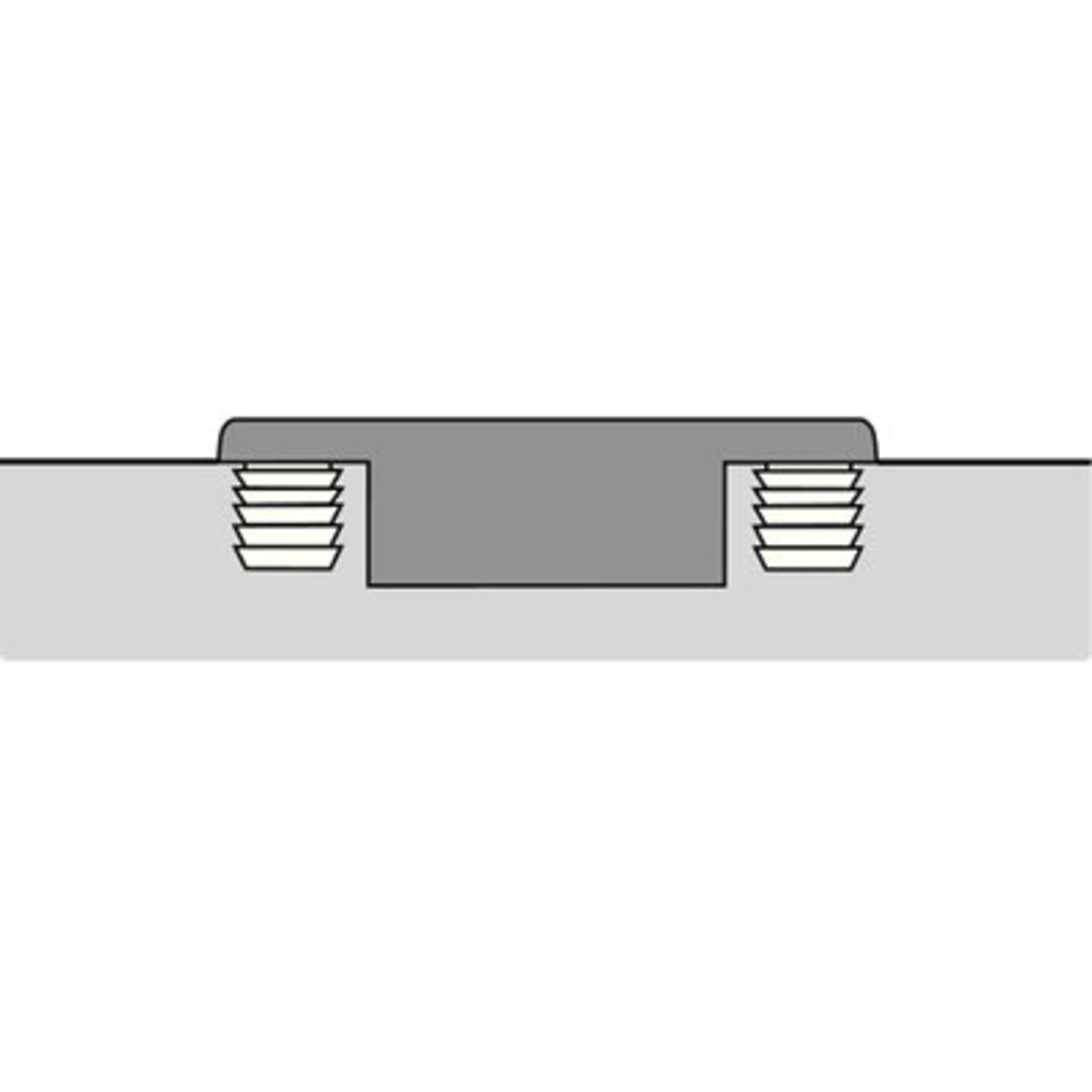

Knock-in Dowel

Material / Finishes

Zinc / Steel

Overlay

Full Overlay

Suggested Retail Price:

$ 8.04

Please Login to view your pricing
