Hettich 110° Soft-Close Hinge | H/O Dowel 52mm

Home > Products >Hinges/Pocket Door>Hettich>Hettich Soft and Self Close - Hettich Pattern 52mm>Hettich 110º Soft Close - Hettich Pattern>Hettich 110º Soft Close H/O - Dowel - Hettich Pattern

Hettich 110º Soft Close H/O - Dowel - Hettich Pattern

Hettich 110º Soft Close H/O - Dowel - Hettich Pattern

Hettich 110º Soft Close H/O - Dowel - Hettich Pattern

Hettich 110º Soft Close H/O - Dowel - Hettich Pattern

Hettich 110º Soft Close H/O - Dowel - Hettich Pattern

Brand

Hettich

Closing Type

Soft-Close

Opening Degree

110°

Hinge Mounting

Knock-in Dowel

Material / Finishes

Zinc / Steel

Overlay

Half Overlay

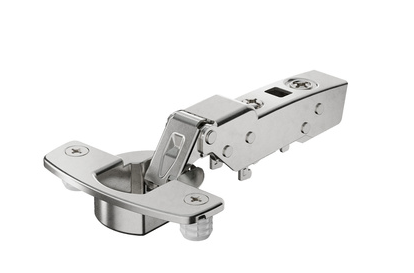

Sensys 110° hinge
With integrated Silent System, with self closing feature (Sensys 8645i)
Quality classification under EN 15570, Level 3
Opening angle 110°
For door thickness 15 - 24 mm
Door mounting option half overlay
Drilling pattern TH 52 x 5,5 mm
Cup depth 12.8 mm
Installation for pressing in
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Steel nickel plated
Box Qty. 50

Suggested Retail Price:

$ 9.94
