Hettich Pie Cut Lazy Susan Hinge

Hettich Pie Cut Lazy Susan - Dowel - Hettich Pattern

Brand

Hettich

Closing Type

Self / Regular-Close

Hinge Mounting

Knock-in Dowel

Material / Finishes

Zinc / Steel

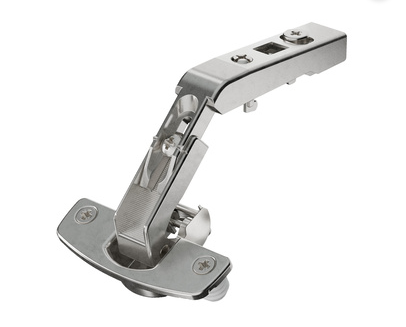

Hinge for corner cabinet folding doors
Without self closing feature (Intermat 9930)
Quality classification under EN 15570, Level 2
Opening angle 50° / 65°
For door thickness 15 - 21 mm
Door mounting option overlay
Drilling pattern TH 52 x 5,5 mm
Cup depth 12.8 mm
Installation for pressing in
Integrated diagonal adjustment +9.5 mm / -9.5 mm

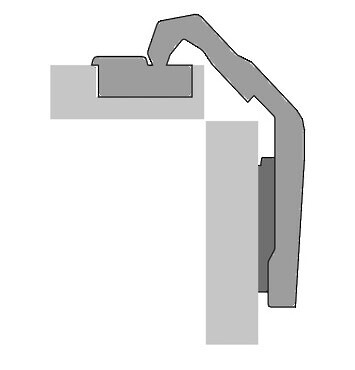

Integrated overlay adjustment, see sketch
Integrated depth adjustment, see sketch
Height adjustment at mounting plate
Steel / die-cast zinc nickel plated
Box Qty. 50

Overlay:

Full Overlay Half Overlay Inset Blind Corner

Opening Degree:

110° 165º "Zero Protrusion" 95°

Closing Type:

Soft-Close Self / Regular-Close

Hinge Mounting:

Screw-on Knock-in Dowel Fix Fast

Closing Type:

SOFT CLOSE

Suggested Retail Price:

$ 9.40
