Hettich 165° Zero Protrusion Soft-Close Hinge

Home > Products >Hinges/Pocket Door>Hettich>Hettich Soft and Self Close - Hettich Pattern 52mm>Hettich 165º Zero Protrusion soft close - Hettich Pattern>Hettich 165º Zero Protrusion Soft Close F/O - Dowel - Hettich Pattern

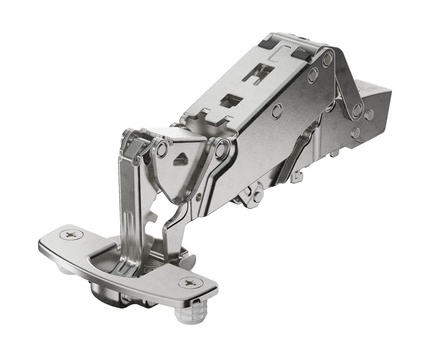

Hettich 165º Zero Protrusion Soft Close F/O - Dowel - Hettich Pattern

Hettich 165º Zero Protrusion Soft Close F/O - Dowel - Hettich Pattern

Hettich 165º Zero Protrusion Soft Close F/O - Dowel - Hettich Pattern

Hettich 165º Zero Protrusion Soft Close F/O - Dowel - Hettich Pattern

Hettich 165º Zero Protrusion Soft Close F/O - Dowel - Hettich Pattern

Brand

Hettich

Closing Type

Soft-Close

Opening Degree

165º "Zero Protrusion"

Hinge Mounting

Knock-in Dowel

Material / Finishes

Zinc / Steel

Overlay

Full Overlay

Sensys wide angle hinge, with zero protrusion
With integrated Silent System, with self closing feature (Sensys 8657i)
Quality classification under EN 15570, Level 3
Opening angle 165°
For door thickness 15 - 32 mm
Door mounting option overlay
Drilling pattern TH 52 x 5,5 mm
Cup depth 11.6 mm
Installation for pressing in
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Steel / die-cast zinc nickel plated
Box Qty. 50

Suggested Retail Price:

$ 11.90

Please Login to view your pricing
