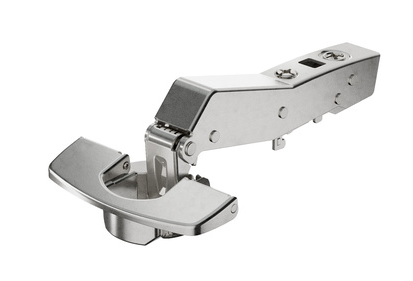

Hettich 45° Angle Hinge Soft Close - Fix Fast - Blum Pattern
Hettich 45° Angle Hinge Soft Close - Fix Fast - Blum Pattern
Hettich 45° Angle Hinge Soft Close - Fix Fast - Blum Pattern
Hettich 45° Angle Hinge Soft Close - Fix Fast - Blum Pattern
Hettich 45° Angle Hinge Soft Close - Fix Fast - Blum Pattern
SKU: 9088079
View related products
Brand
Hettich
Overlay

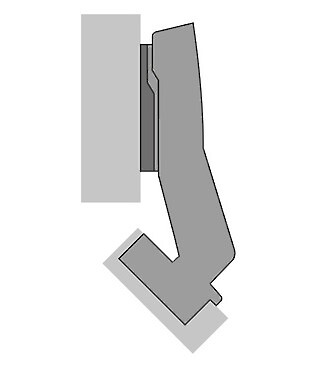

45° Corner (Door) to Corner (Gable)
Opening Degree
95°
Closing Type
Soft-Close
Hinge Mounting
Fix Fast
Material / Finishes
Zinc / Steel
  • Sensys angle hinge W45
  • With integrated Silent System, with self closing feature (Sensys 8639i W45)
  • Quality classification under EN 15570, Level 3
  • Opening angle 95°
  • For door thickness 15 - 28 mm
  • Door mounting option overlay

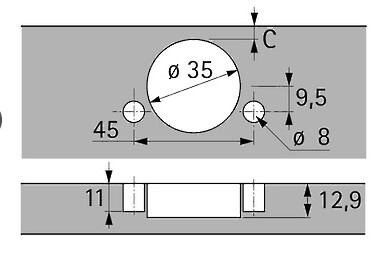

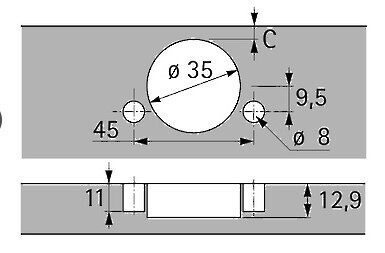

  • Drilling pattern TB 45 x 9,5 mm
  • Cup depth 12.8 mm
  • Installation Fix fast assembly
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel nickel plated
  • Box Qty. 50
Overlay:
Full Overlay Half Overlay Inset 45° Corner (Door) to Corner (Gable) Blind Corner Pie Corner 45° Corner Full Overlay - Thin Doors
Opening Degree:
110° 165º "Zero Protrusion" 95° 50° / 65°
Closing Type:
Soft-Close Self / Regular-Close
Hinge Mounting:
Knock-in Dowel Fix Fast
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 14.68
