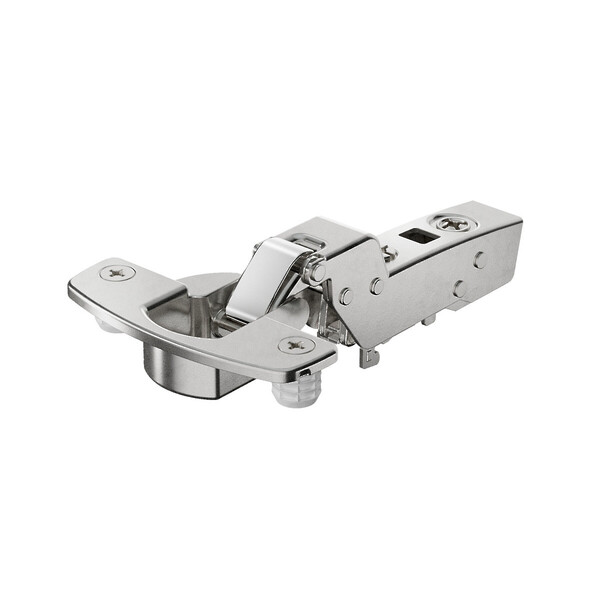

Sensys thick door hinge, door thickness up to 32 mm
With integrated Silent System, with self closing feature (Sensys 8631i)
Quality classification under EN 15570, Level 2
Opening angle 95°
For door thickness 15-32 mm
Door mounting option inset (B -4 mm)
TH - drilling pattern 52 x 5.5 mm
Cup depth 12.8 mm
Installation for pressing in (TH 53)
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
steel nickel plated
