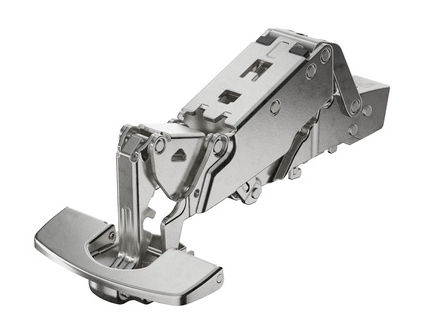

Hettich 165º Zero Protrusion **SELF** Close - Fix Fast - Blum Pattern
Hettich 165º Zero Protrusion **SELF** Close - Fix Fast - Blum Pattern
Hettich 165º Zero Protrusion **SELF** Close - Fix Fast - Blum Pattern
Hettich 165º Zero Protrusion **SELF** Close - Fix Fast - Blum Pattern
Hettich 165º Zero Protrusion **SELF** Close - Fix Fast - Blum Pattern
Hettich 165º Zero Protrusion **SELF** Close - Fix Fast - Blum Pattern
SKU: 9099623
View related products
Brand
Hettich
Overlay
Full Overlay
Opening Degree
165º "Zero Protrusion"
Closing Type
Self / Regular-Close
Hinge Mounting
Fix Fast
Material / Finishes
Zinc / Steel
  • Sensys wide angle hinge, with zero protrusion
  • Without Silent System, with self closing feature (Sensys 8657)
  • Quality classification under EN 15570, Level 3
  • Opening angle 165°
  • For door thickness 15 - 32 mm
  • Door mounting option overlay

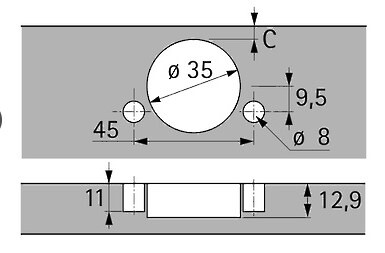

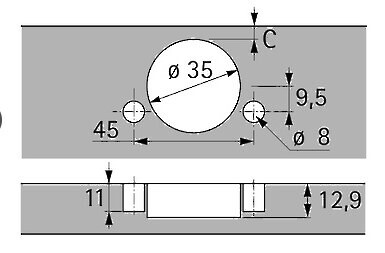

  • Drilling pattern TB 45 x 9,5 mm
  • Cup depth 11.6 mm
  • Installation Fix fast assembly
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • Steel / die-cast zinc nickel plated
  • Box Qty. 50
Overlay:
Full Overlay Half Overlay Inset 45° Corner (Door) to Corner (Gable) Blind Corner Pie Corner 45° Corner Full Overlay - Thin Doors
Opening Degree:
110° 165º "Zero Protrusion" 95° 50° / 65°
Closing Type:
Soft-Close Self / Regular-Close
Hinge Mounting:
Knock-in Dowel Fix Fast
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 11.50

Please Login to view your pricing
