Hettich 165º Zero Protrusion Soft Close F/O - Fix Fast - Blum Pattern

Hettich 165º Zero Protrusion Soft Close F/O - Fix Fast - Blum Pattern

Hettich 165º Zero Protrusion Soft Close F/O - Fix Fast - Blum Pattern

Hettich 165º Zero Protrusion Soft Close F/O - Fix Fast - Blum Pattern

Hettich 165º Zero Protrusion Soft Close F/O - Fix Fast - Blum Pattern

Brand

Hettich

Closing Type

Soft-Close

Opening Degree

165º "Zero Protrusion"

Hinge Mounting

Fix Fast

Material / Finishes

Zinc / Steel

Overlay

Full Overlay

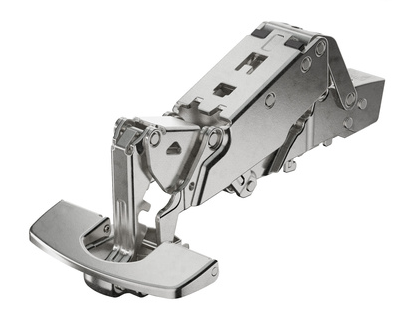

Sensys wide angle hinge, with zero protrusion
With integrated Silent System, with self closing feature (Sensys 8657i)
Quality classification under EN 15570, Level 3
Opening angle 165°
For door thickness 15 - 32 mm
Door mounting option overlay

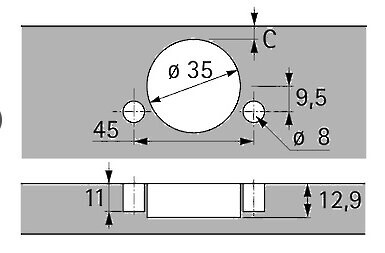

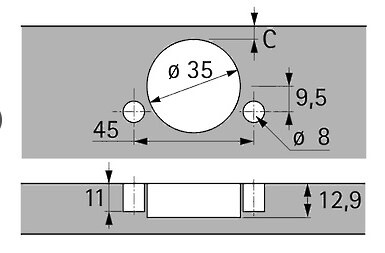

Drilling pattern TB 45 x 9,5 mm
Cup depth 11.6 mm
Installation Fix fast assembly
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Steel / die-cast zinc nickel plated
Box Qty. 50

Suggested Retail Price:

$ 13.02

Please Login to view your pricing
